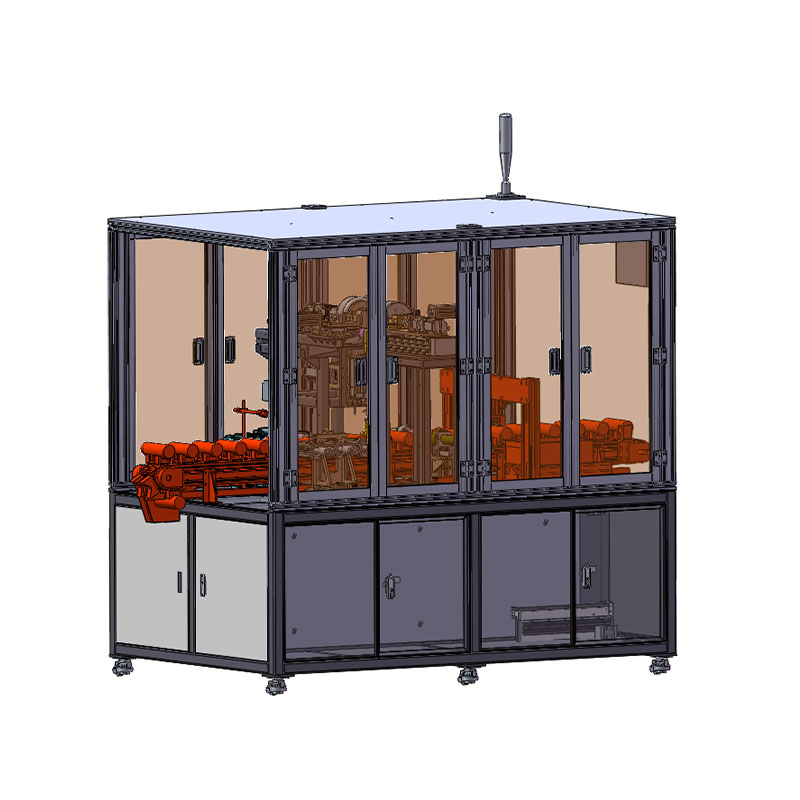

Planish Machine for Supercapacitor/Cylindrical Battery

EAP-3X120
EAP-4X120
EAP-6X500
Usage：Planish or flatten the tab of cylinder cell

Planish is a process for the manufacturing process of tables battery. The planish machine is the core equipment for realizing this process. This flattening machine adopts a three-cone structure as the planish parts for the welding surface of the battery. It has the characteristics of high efficiency, high flatness, high precision and controllability, and provides strong guarantee for the production of battery cells. According to user needs, this equipment provides two structural forms: horizontal and vertical. It can be produced by manual loading and unloading, or it can be connected with winding machines and welding machine with conveyer. According to production quality control requirements, this planish machine is equipped with short-circuit test and height test detection processes as standard. Users can select flatness detection, diameter detection and other detection functions according to their needs.
Type EAP-3X120 EAP-46120 EAP-60500 Dimensions Weight Power 5KW/220v 5KW/220v 5KW/220v Battery Diameter 26/32/33/35 46 60 Battery Hight 40-150 50-150 50-500 Cycle Time ≥4s ≥6s ≥6s Rated Speed 600r/min 600r/min 600r/min Rated Feed Velocity 6mm/s 6mm/s 6mm/s Test Function LCR Meters and Impedance Analyzers Height detection LCR Meters and Impedance Analyzers Height detection LCR Meters and Impedance Analyzers Height detection Customization Accept Accept Accept

Type	EAP-3X120	EAP-46120	EAP-60500
Dimensions
Weight
Power	5KW/220v	5KW/220v	5KW/220v
Battery Diameter	26/32/33/35	46	60
Battery Hight	40-150	50-150	50-500
Cycle Time	≥4s	≥6s	≥6s
Rated Speed	600r/min	600r/min	600r/min
Rated Feed Velocity	6mm/s	6mm/s	6mm/s
Test Function	LCR Meters and Impedance Analyzers Height detection	LCR Meters and Impedance Analyzers Height detection	LCR Meters and Impedance Analyzers Height detection
Customization	Accept	Accept	Accept
